Wiring a button with 2 or 4 pins on an ESP32

Last updated March 2023

How I wire a button with either 2 or 4 pins with ESP32 boards. (This works with an ESP8266 too.)

Parts

Schematic

This example uses the D25 pin to power the button, but you can also use the 3.3V pin instead.

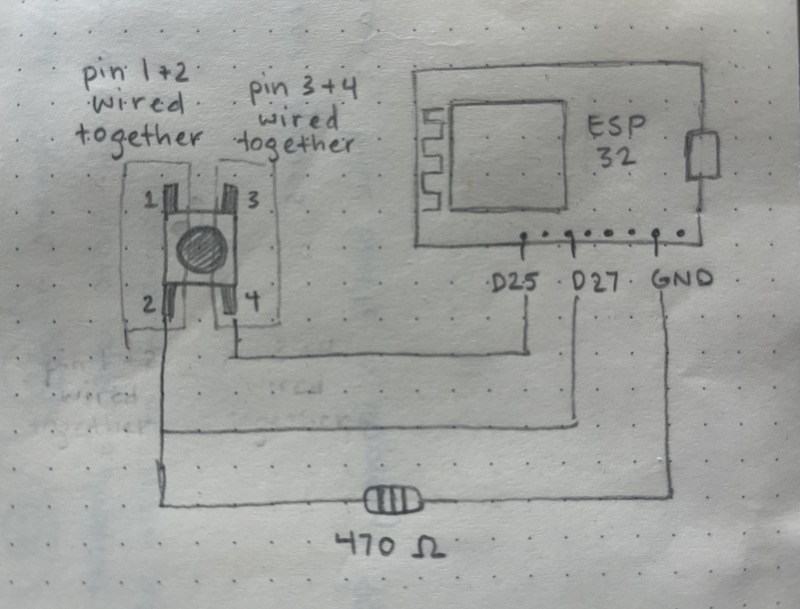

Button wiring schematic

Wiring

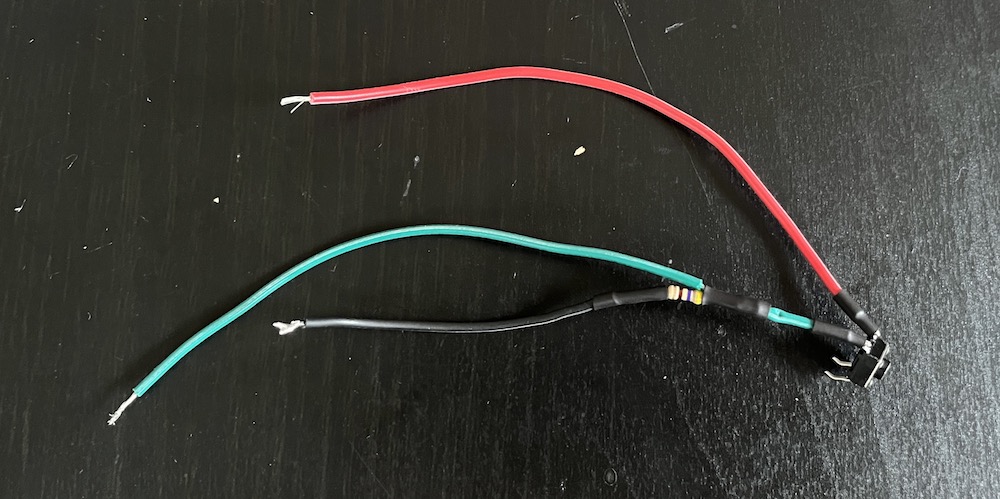

Button wiring soldered

Code

If powering the button with the 3.3V pin, omit the lines referencing BUTTON_PIN_POWER

#define BUTTON_PIN_POWER 25
#define BUTTON_PIN_DATA 27 // omit if using 3.3V pin

void setup() {
  Serial.begin(115200);
  delay(100);

  pinMode(BUTTON_PIN_POWER, OUTPUT);
  pinMode(BUTTON_PIN_DATA, INPUT);
}

void loop() {
  digitalWrite(BUTTON_PIN_POWER, HIGH);

  int buttonRead = digitalRead(BUTTON_PIN_DATA); // HIGH when button held

  if (buttonRead == HIGH) {
    Serial.println("ON");
  } else {
    Serial.println("OFF");
  }

  delay(100);
}
